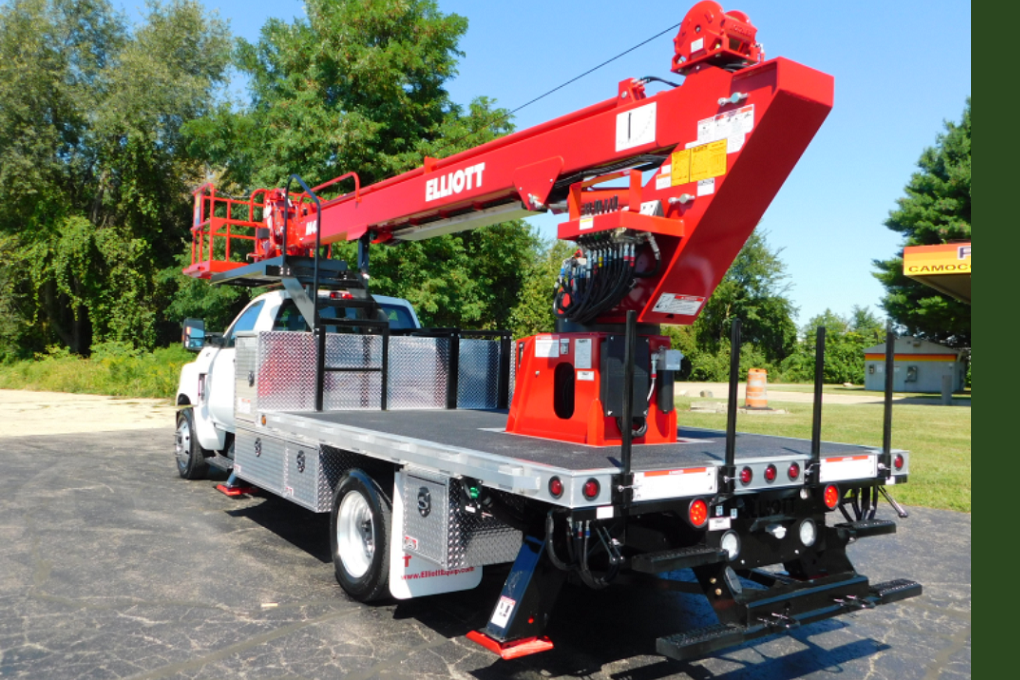

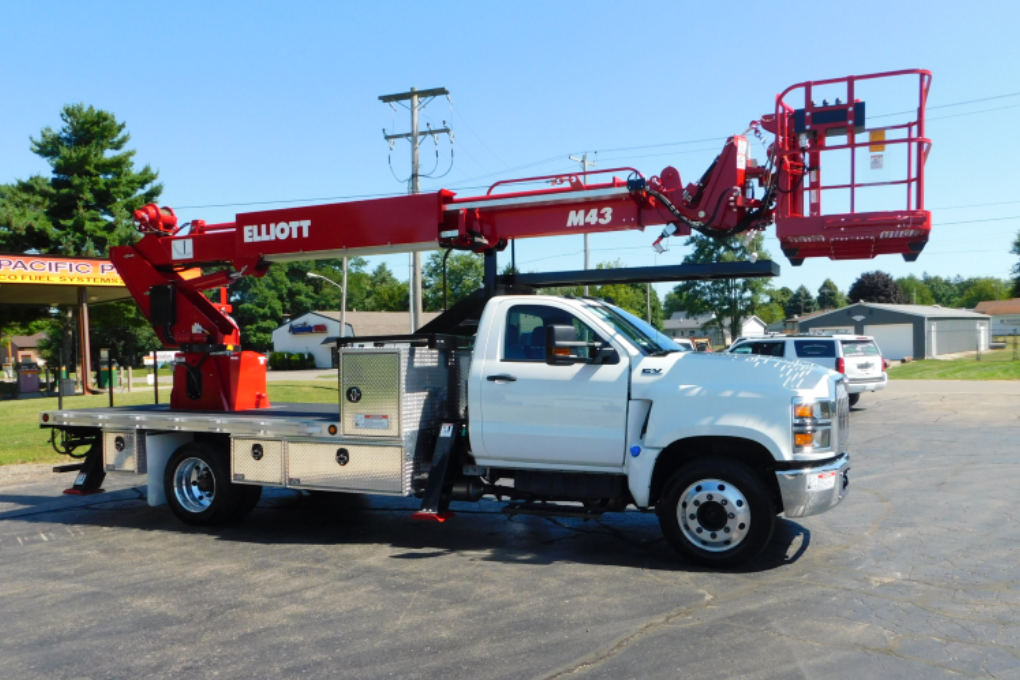

Int’l CV515 Elliott M43 Sign Truck

Categories: ,

Product Description


1) Elliott M43R S/N 7781: 43′ to the bottom of the platform, 48′ of working height, 110V line to platform, 40″x60″ rotating work platform, 500lb platform capacity, 360 degree continuous rotation, 500lb capacity platform mounted jib winch, 2,000lb capacity boom mounted winch, (4) hydraulic outriggers, full upper controls, remote start//stop, 12 volt emergency pump.

1) 12’6″ Aluminum flat bed: (2) two 48″ underbody tool boxes, (1) 30″x24″x98″ cross body lamp box, (4)24″ under body toolboxes, open type angled rear step bumper, rear trailer hitch assembly with light plug, (4) single outrigger pad holders with (4) wood pads, walk way to the work platform.

1) International CV515: -23,500lb GVW, 8,000lb front-15,000 rear, 350hp duramax 6.6 diesel engine, Allisson 2700 RDS 6 speed transmission, 2 front tow hooks, hydraulic brakes, block heater, 40 gallon fuel tank, 3.5″ dash display, bluetooth, air conditioning, high back driver seat, 2 man passenger seat with fold down center console disc wheels, aluminum wheels.


Estimated weights: front 6,180lbs, Rear 11,160lbs, = Total 17,340lbs
