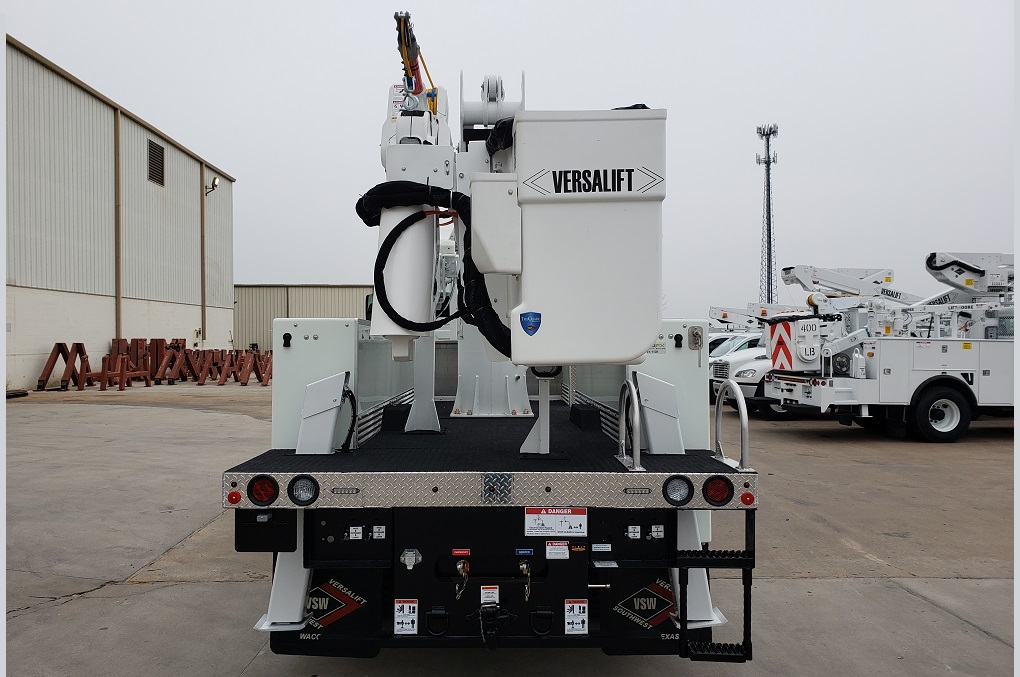

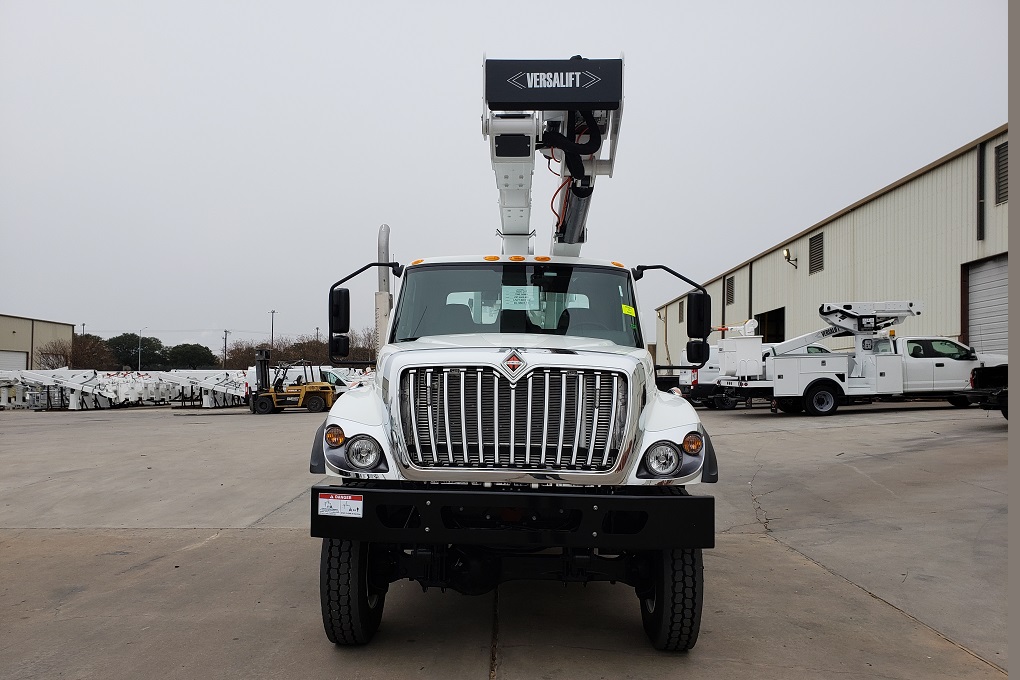

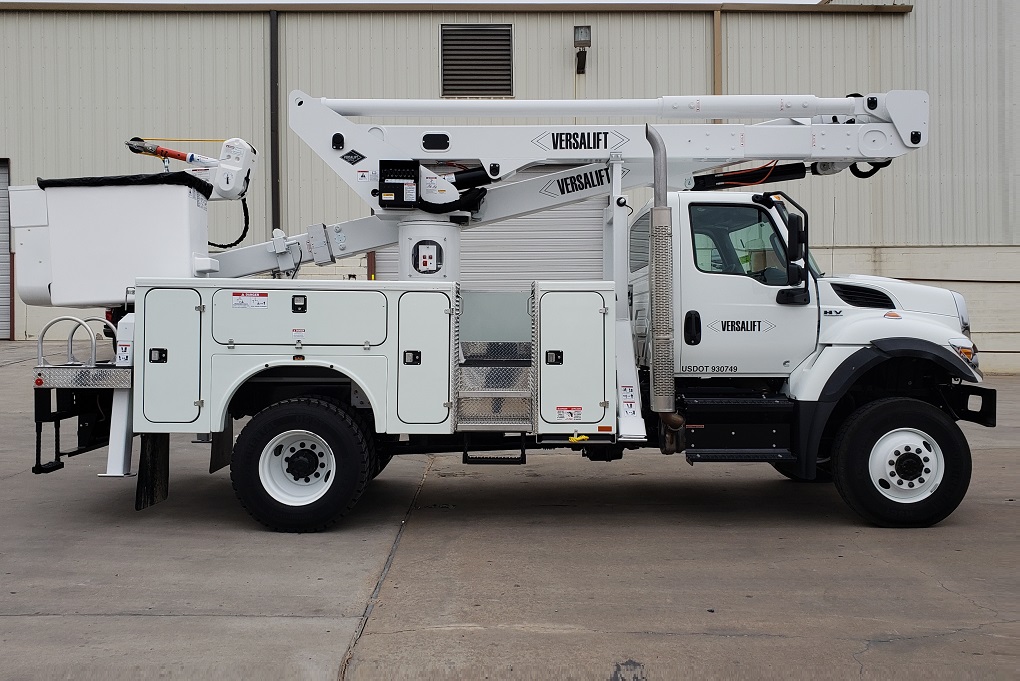

Int’l HV507 4×4 Versalift VST6000 Aerial Truck

Out of stock

Category: Tag:

Product Description

TRUCK IN PICTURE SOLD!  NEXT AVAILABLE WILL VARY

Call for next available



1) VERSALIFT VST-6000-MHI-03, insulated 60 ft. (18.3 m) telescopic aerial platform lift, 65 ft. (19.8 m) working height including the following items:

-Standard platform capacity of 650 lbs. with platform elevator but without jib and winch attached.

-Platform capacity with the jib and winch and platform elevator is 500 lbs.

-VERSALIFT TruGuard™2.0 dielectric system with RH single stick control. All control handles are isolated and tested per ANSI 92.2 2009. The high resistive dielectric system is protected from direct environmental and job related contamination. TruGuard™2.0 technology incorporates the use of full hydraulic controls with durable metal handles and linkages. Includes 180° platform rotator.

-Platform elevator allowing operator 24 in. additional height from standard.

-Hydraulic dual arm articulating jib pole and winch package for up to 1000 lbs. (454 kg) maximum capacity.

-Radio controlled remote engine start/stop and emergency power from platform

-Continuous rotation

-7.5 GPM open center hydraulic system with a 2250 psi (158 kg/cm²) operating pressure.

-Side mounted telescopic upper boom allows low stowing of platform.  Fiberglass inner boom provides

insulation gap of 48 inches fully retracted meeting ANSI A92.2.

-Chassis insulating system (fiberglass lower boom insert) providing 24 in. (0.61 m) insulation gap and including accommodations to bridge insulation gap for testing per ANSI 92.2.

-ANSI 92.2 Category B 69 KV rating including test bends on inner boom.

-Inner boom finished with white urethane paint over a white gel coat.

-Non-lube bearings used throughout.

-One set of hydraulic tool outlets at platform.  Quick disconnect fittings included.

-Tubular pedestal including sub frame mounted A-frame outriggers with pivot feet, two control valves, and a selector valve.

-Auxiliary outriggers with pivot feet and two control valves

-Outrigger boom interlock system for main and auxiliary outriggers

-Integral reservoir with a 25-gallon (94.5 l) capacity and dual sight gauges.

-Closed heavy-duty one-step 24 in. X 48 in. X 42 in. (0.61m X 1.22m X 1.07m) fiberglass platform.

-Platform liner and vinyl cover.

-Master/slave hydraulic leveling with upper and lower control to tilt for cleanout or rescue.

-12 volt DC backup pump

-Automatic boom latch for upper boom

-Full length sub frame with tubular rubber platform support

-Painted Time standard White Urethane

-Two safety harnesses and lanyards.

-Two operator manuals and service manuals

 1) 2019 International HV507 4X4 cab and chassis

-Cummins B6.7 260HP diesel engine

-Allison 3500 RDS automatic transmission

-33,000 lb. GVWR: 13,000 lb. front GAWR and 21,000 lb  rear GAWR

-22.5×8.25 painted steel disc wheels with 11R22.5 Continental tires.

-114 inch C.A.

-Engine block heater with socket located below driver’s door

-Air brake system

-Back up alarm

-Air conditioning

-AM/FM radio

-Painted Winter White

1) Brand FX 102T fiberglass line body with the following specifications:

-Aluminum tread plate floor and steel understructure

-Compartment height-48 inches and compartment depth-18 inches

-Flexglo compartment lights mounted in top and sides of all compartments

-LED lighting package with standard backup light

-Stainless steel rotary latches and hardware

-Clear vinyl rock guards

-Aluminum tread plate tail shelf

-Wheel chock storage

-Master locking system excluding 1st vertical curbside

Street side compartments:

1st Vertical – Two (2) adjustable shelves with dividers

2nd Vertical – Two (2) adjustable shelves with dividers

3rd Vertical – Three (3) adjustable shelves with dividers

Horizontal – One (1) fixed shelf with dividers and divider tray

Rear Vertical – Five (5) locking swivel hooks

Curbside compartments:

1st Vertical Two (2) adjustable shelves with dividers

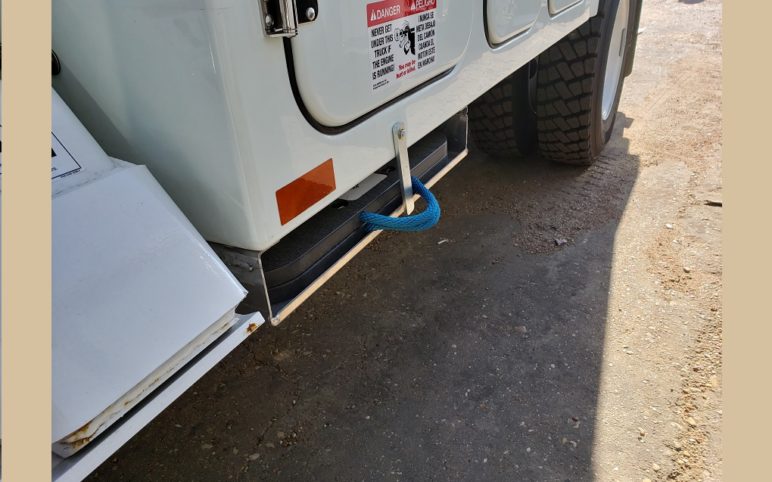

2nd Vertical – Access steps to bed area with grab handle and cable step

3rd Vertical – Three (3) adjustable shelves with dividers

Horizontal – One (1) adjustable shelf with dividers

Rear Vertical – Five (5) locking swivel hooks

 Installation includes the following:

-Install VERSALIFT VST-6000-MHI, mounting hardware, ballast, PTO and pump.

-Install Brand FX Line Body and accessories.

-Install main and auxiliary outriggers, BP-100A pintle hitch, reinforcements, and 7 prong trailer connector

-Install two (2) amber strobe light in rear tail shelf and two (2) strobe lights in front grill.

-Install mud flaps, outrigger pad holders, slope indicators, access steps and handrails.

-Relocate glad hands to rear of chassis

-Install grounding kit system, park brake interlock system and quick disconnect fittings.

-Paint black non-skid on body floor.

-Furnish outrigger pads, wheel chocks, fire extinguisher, and 3 piece triangle reflector kit.

-Test ride completed unit for one (1) hour.

-Test and certify per ANSI A92.2
