Product Description
QUOTATION 47609 AVAILABLE NOW!!!!

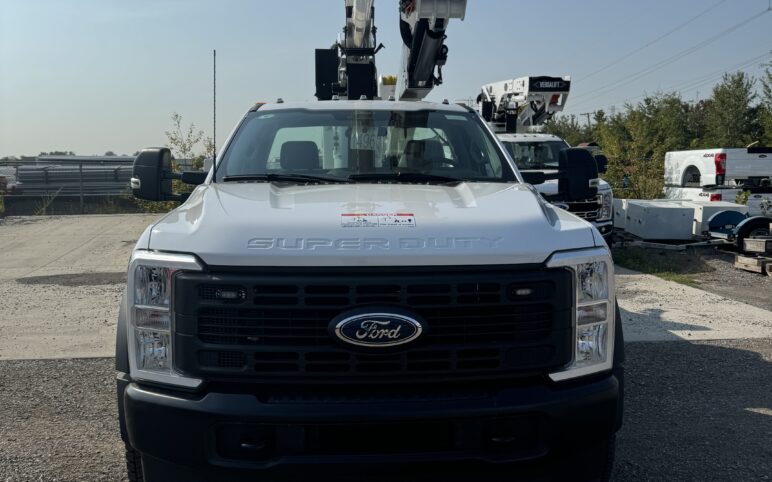

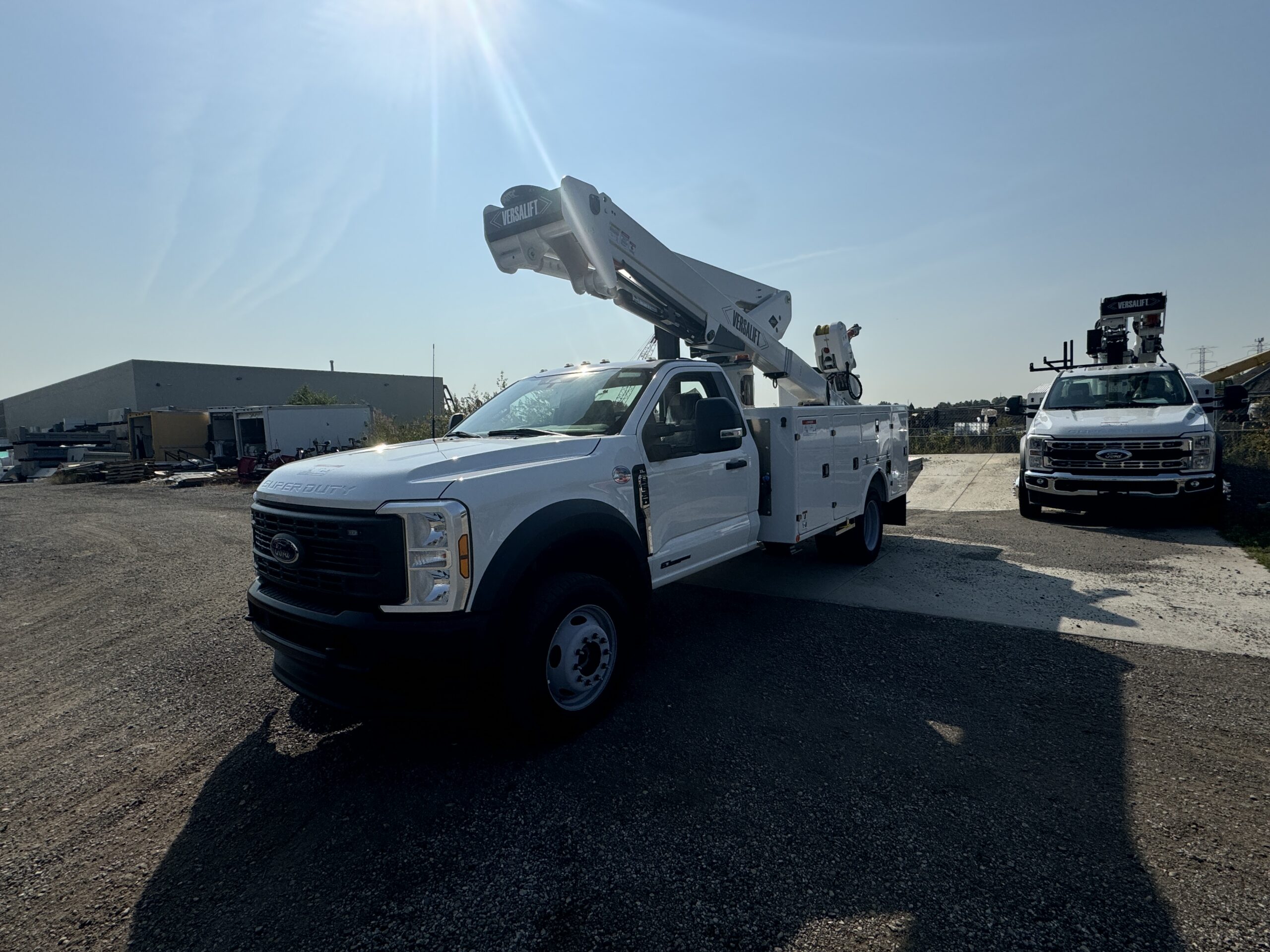

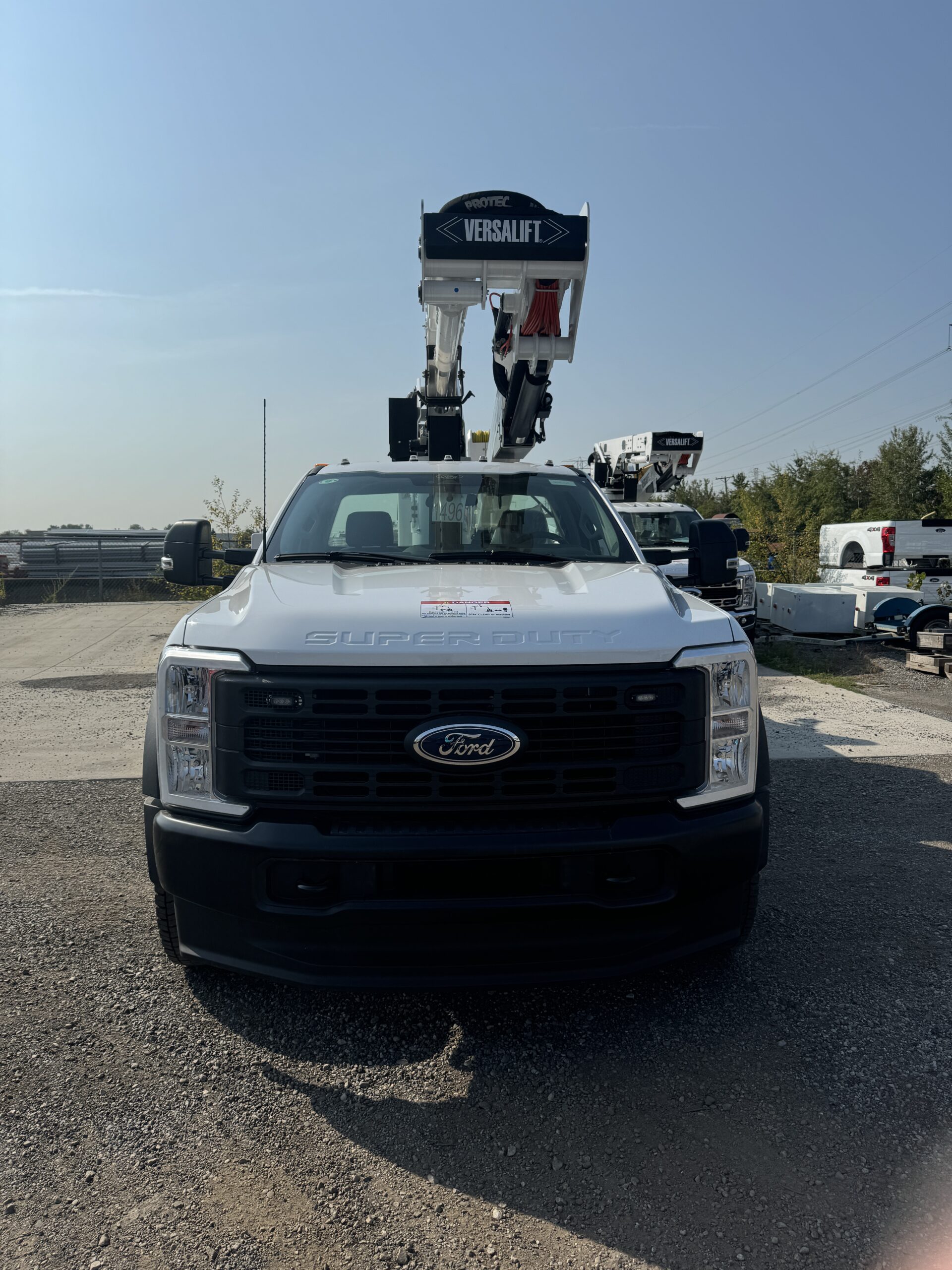

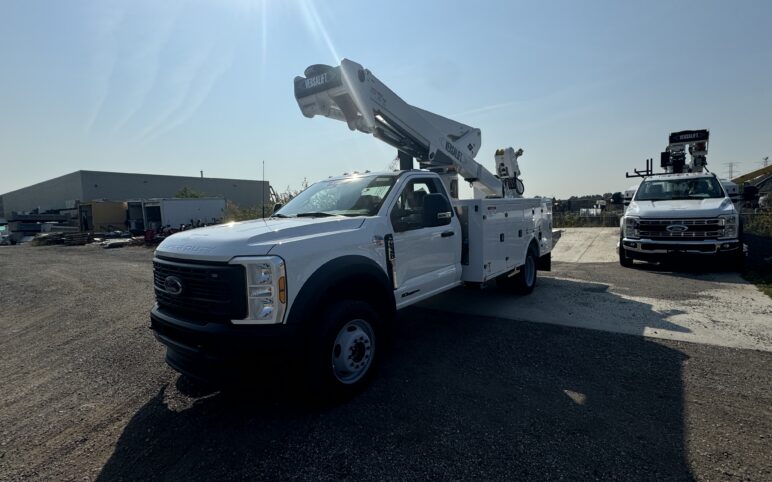

1) 2024 FORD F550 4×4 REG CAB CHASSIS
-6.7 DIESEL ENGINE
-10 SPEED AUTOMATIC TRANSMISSION
-TRACTION TIRES
-LIMITED SLIP REAR AXLE
-REAR VIEW CAMERA AND PREP KIT

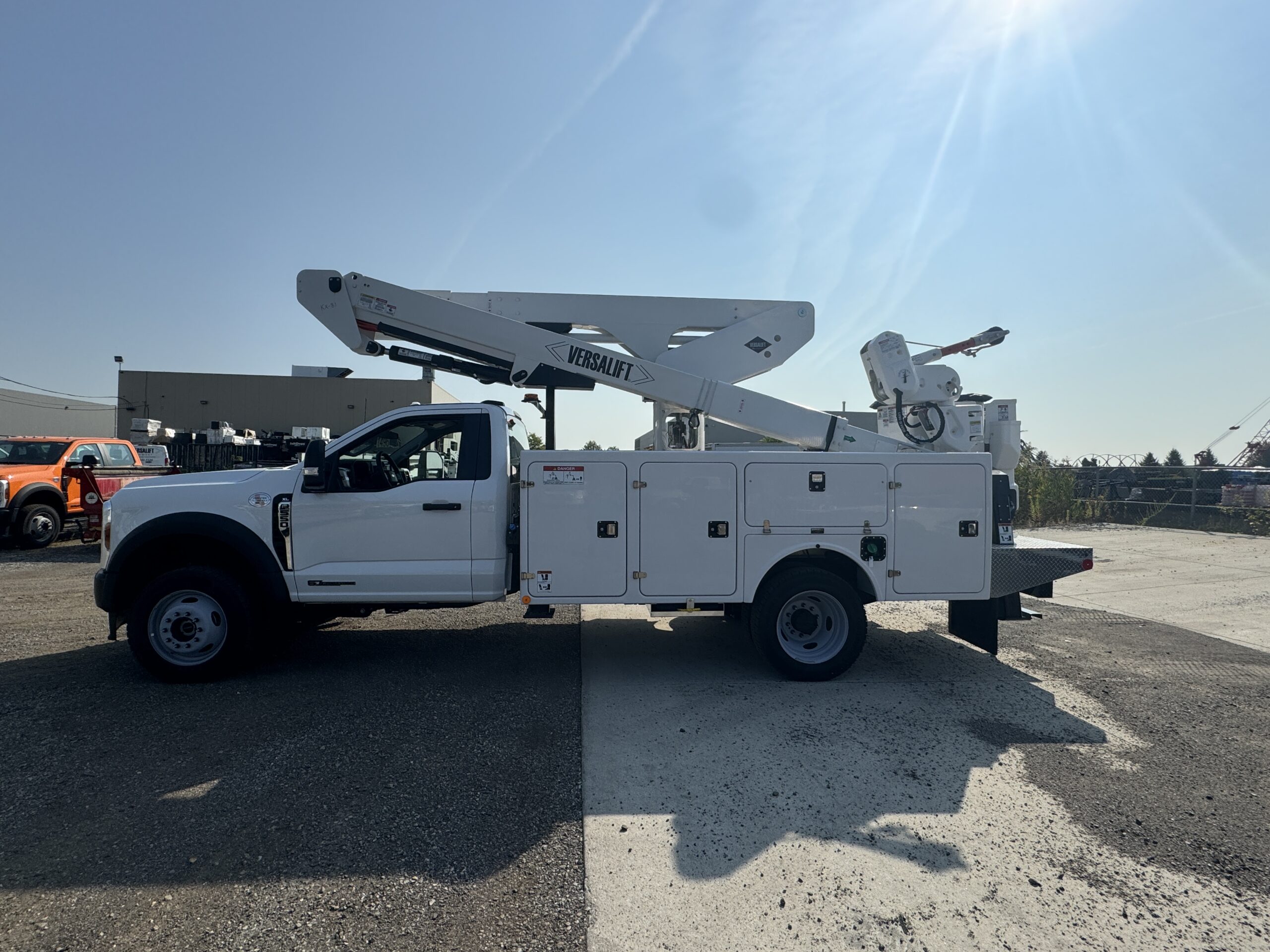

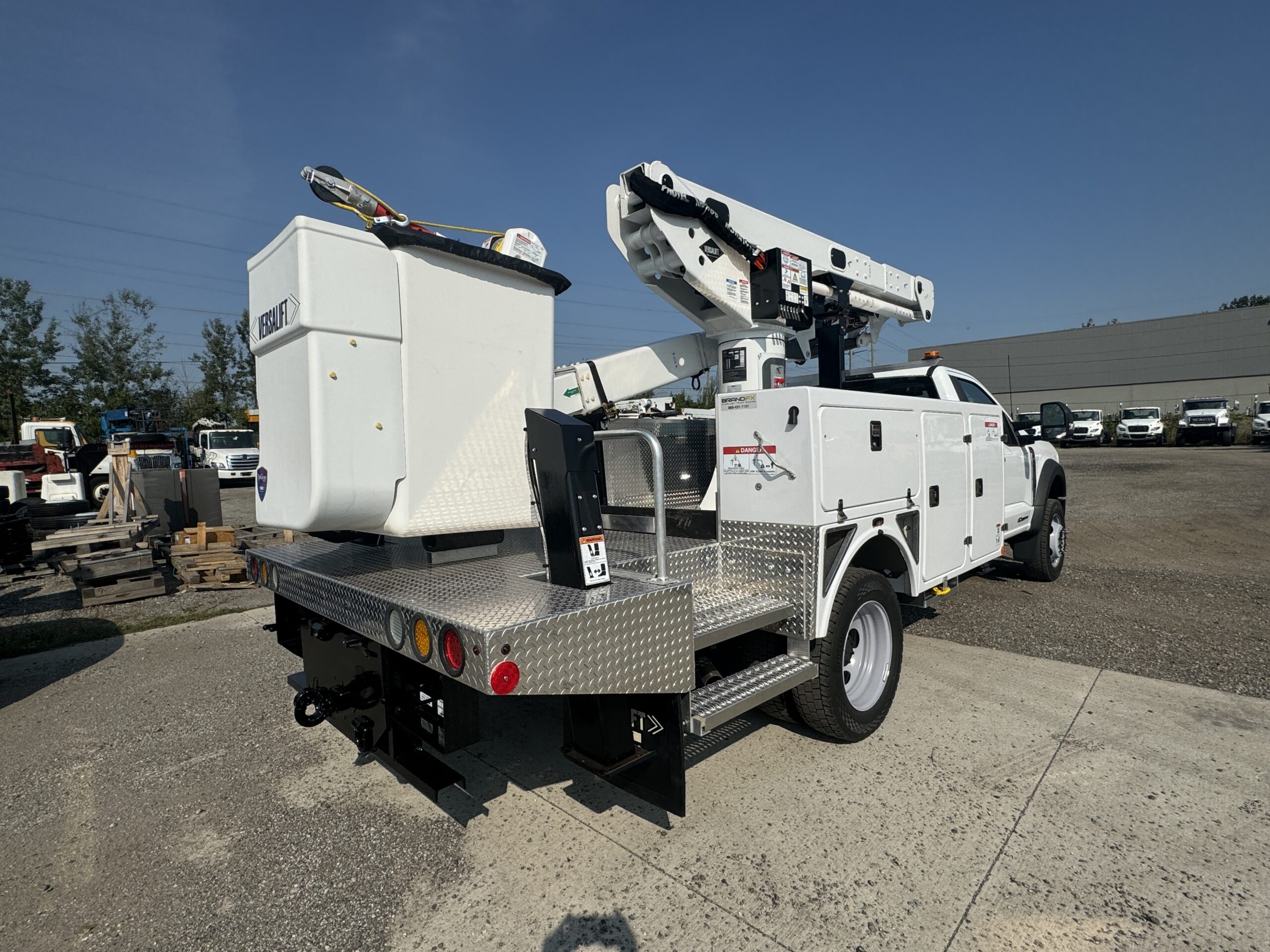

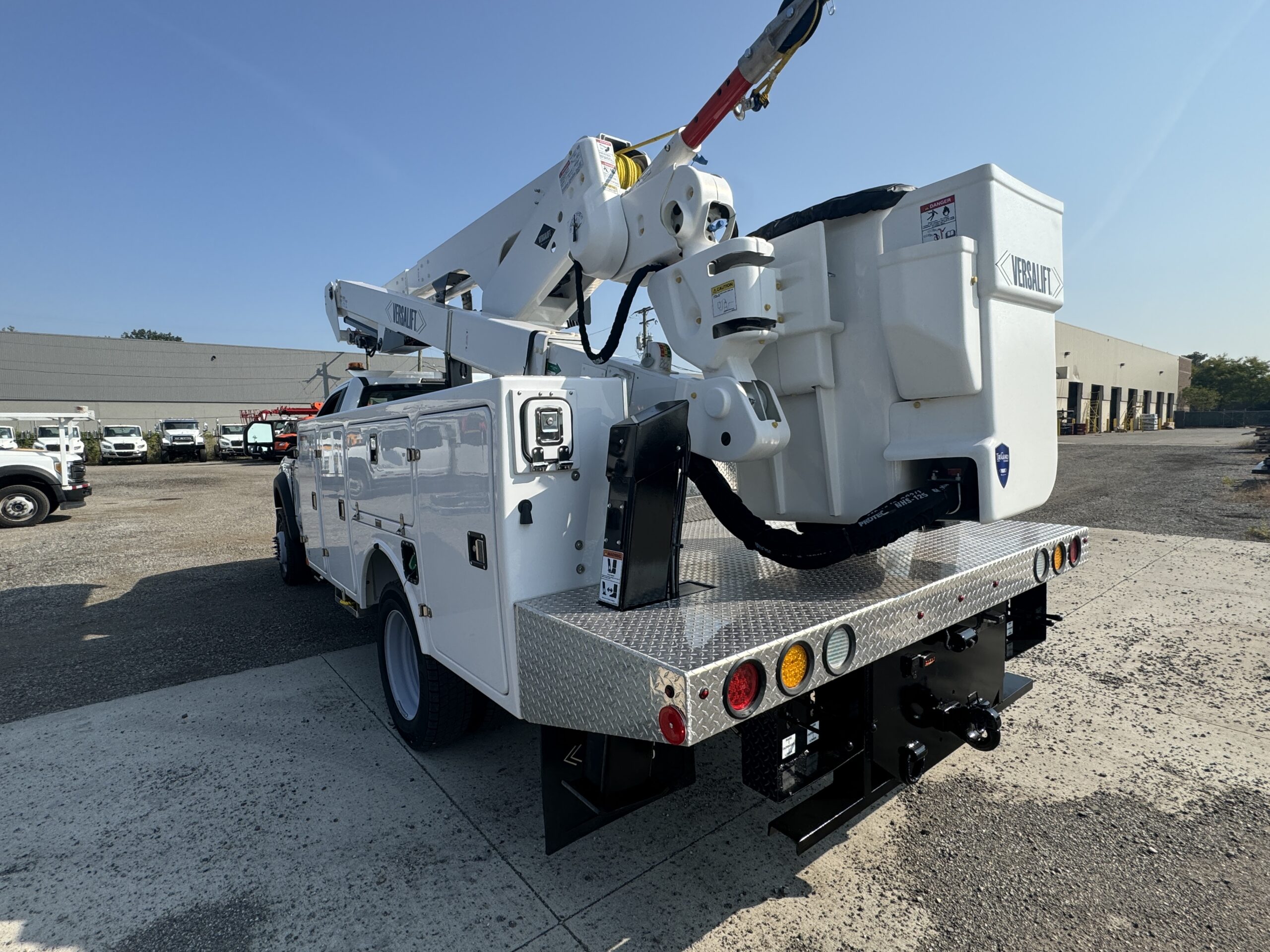

1) VST-47 MHI INSULATED 47′ TELESCOPIC AERIAL PLATFORM LIFT
-52’6″ WORKING HEIGHT
-31’5″ HORIZONTAL REACH
-P-1260-8 46 1/4″ TALL STANDARD PEDESTAL
-PLATFORM CAPACITY OF 400 LBS
-PLATFORM MOUNTED FULL PRESSURE UNITROL SINGLE-STICK CONTROLS INCLUDING
SAFETY TRIGGER, EMERGENCY STOP & HYD PLATFORM ROTATOR W/ TILT

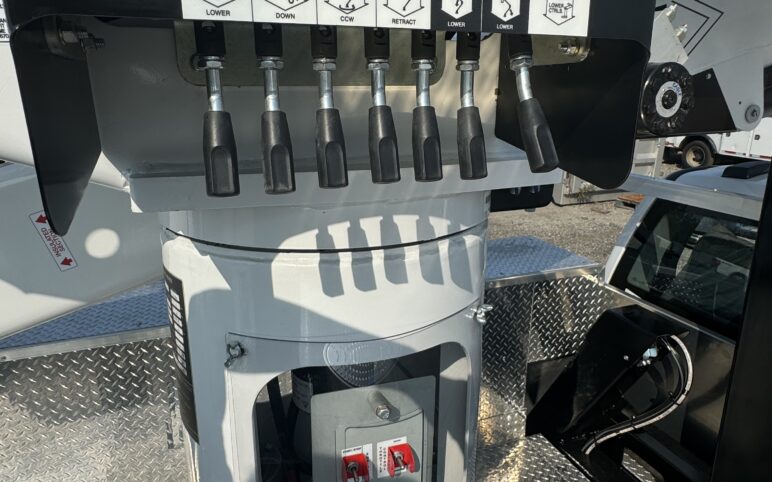

-FULL PRESSURE TURRET MOUNTED LOWER CONTROLS WITH OVERRIDE
-ENGINE START/STOP FROM PLATFORM AND LOWER CONTROLS
-CONTINUOUS 360 DEGREE ROTATION
-SIX GPM OPEN CENTER HYDRAULIC SYSTEM
-SIDE MOUNTED TELESCOPIC UPPER BOOM FOR LOW STOWED PLATFORM. FIBERGLASS
INNER BOOM AND PATENTED ELECTROGARD PROVIDE INSULATION GAP FULLY RETRACTED
MEETING ANSI A92.2-1990 REQUIREMENTS FOR CAT. C, 46kv AND BELOW
-NON-LUBE BEARINGS USED THROUGHOUT
-ONE SET OF HYDRUALIC TOOL OUTLETS AT PLATFORM
-OR-1400-29 A-FRAME FRONT OUTRIGGERS W/ PIVOTING FEET
-OR-1400-42 INDEPENDANT NARROW MODIFIED A-FRAME OUTRIGGERS
-FULL LENGTH SUBFRAME
-VK-1400-14 (4) OUTRIGGER CONTROL VALVES W/SELECTOR VALVE
-CLOSED 24″x30″x42″FIBERGLASS PLATFORM WITH ONE CURBSIDE STEP
-LR-5 50 KV PLATFORM LINER
-CB-7 VINYL BUCKET COVER
-MASTER/SLAVE HYDRAULIC LEVELING
-UPPER BOOM STORAGE CRADLE WITH RATCHET TYPE TIE DOWN STRAP
-TUBULAR RUBBER PLATFORM SUPPORT
-PAINTED STANDARD TIME WHITE
-TWO OPERATOR’S AND TWO SERVICE MANUALS

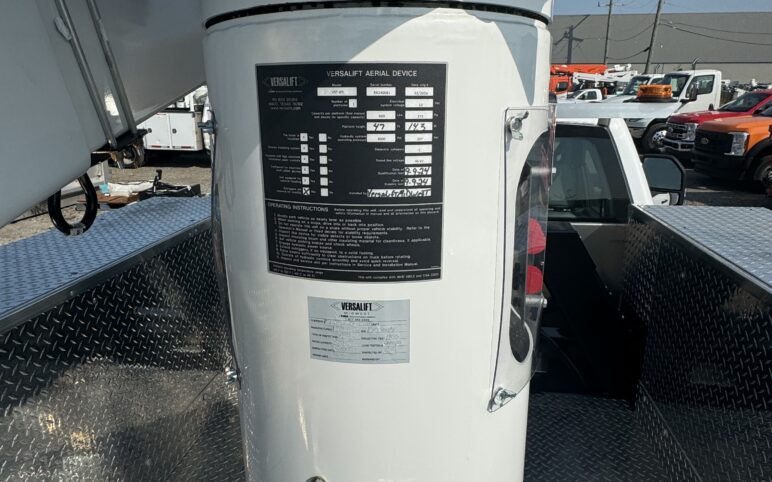

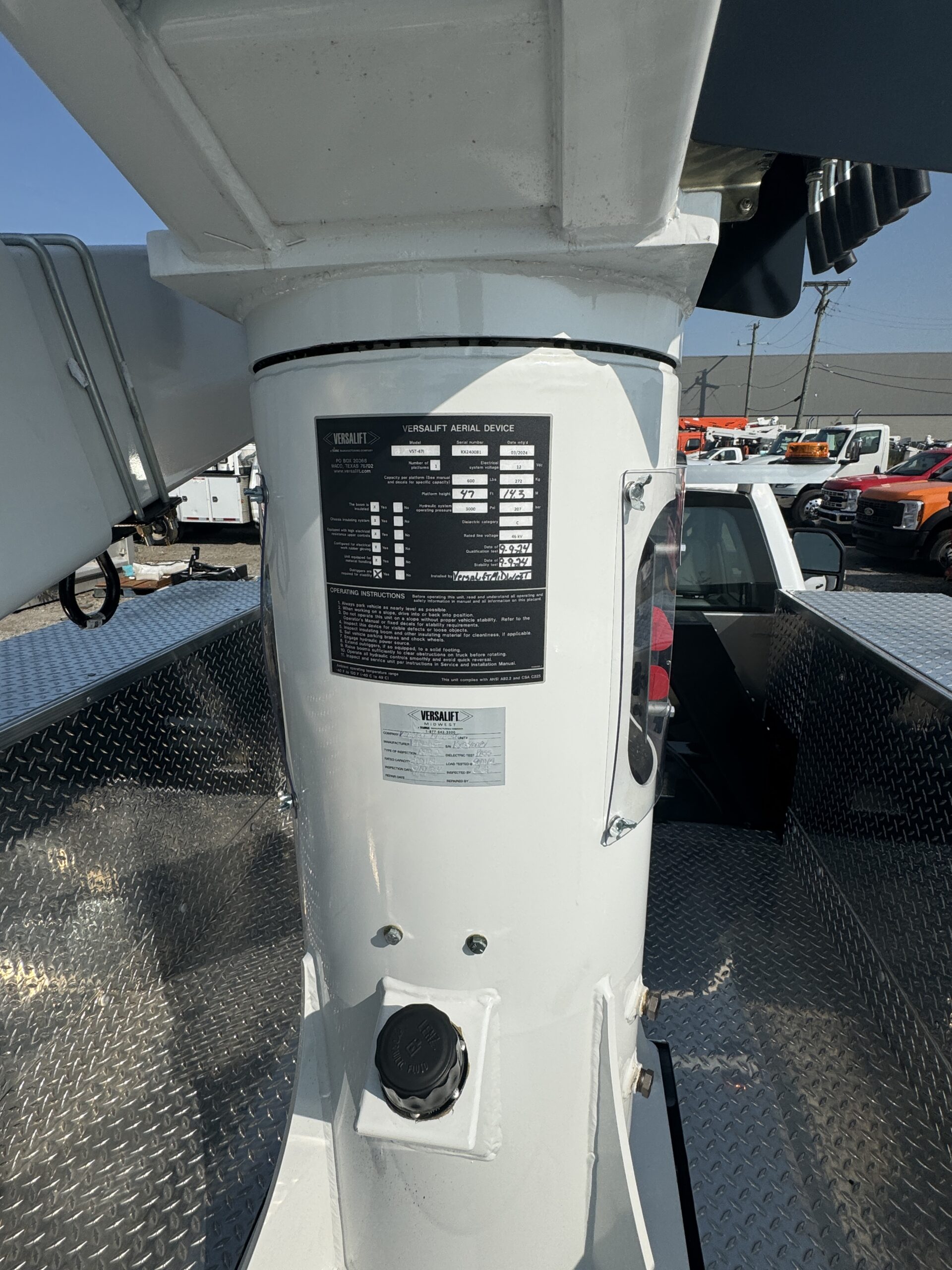

-ANSI A92.2-1990 DATE PLATE
-JW-1270-15 HYDRAULIC JIB AND WINCH PACKAGE
-SC-1260-53 3 AXIS RH TRUGUARD UPPER CONTROLS
-EP-1260-11 EMERGENCY 12V DC HYDRAULIC SYSTEM
-MANUAL 2-SPEED THROTTLE CONTROL
-ONE (1) OPERATING AND SERVICE VIDEO
HYDRAULIC SYSTEM:
-CHELSEA HOT SHIFT PTO WITH DIRECT MOUNT PUMP
-FILTRATION PACKAGE
-DEXRON III HYD OIL
1) BRAND FX BFXB-84LS FIBERGLASS DUAL WHEEL SERVICE BODY
-132″ LONG
-18″ COMPARTMENT DEPTH
-42″ SIDEPACK HEIGHT
-27″ MOUNTING HEIGHT
-ALUMINUM UNDERSTRUCTURE
-FLOW THROUGH VENTILATION SYSTEM
-FULL LENGTH STREETSIDE HOT STICK BOX
-LED LIGHTING PACKAGE
-SHELVING PACKAGE
-CURBSIDE #4 WALK UP ACCESS STEPS
-ALUMINUM TREADPLATE COMPARTMENT TOPS

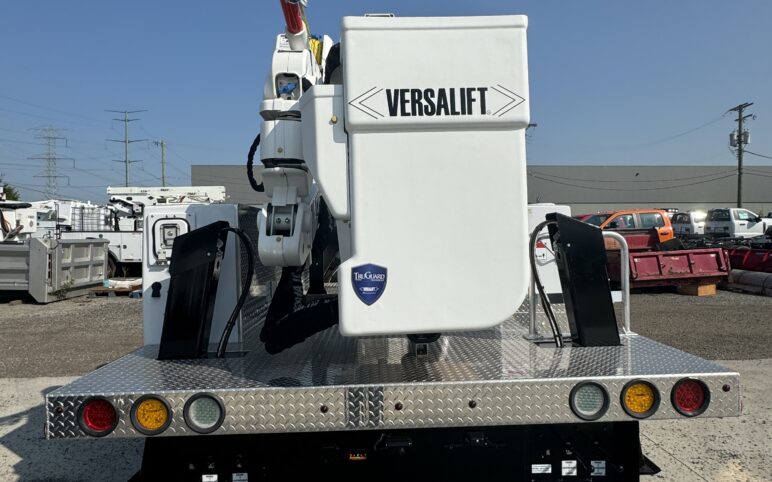

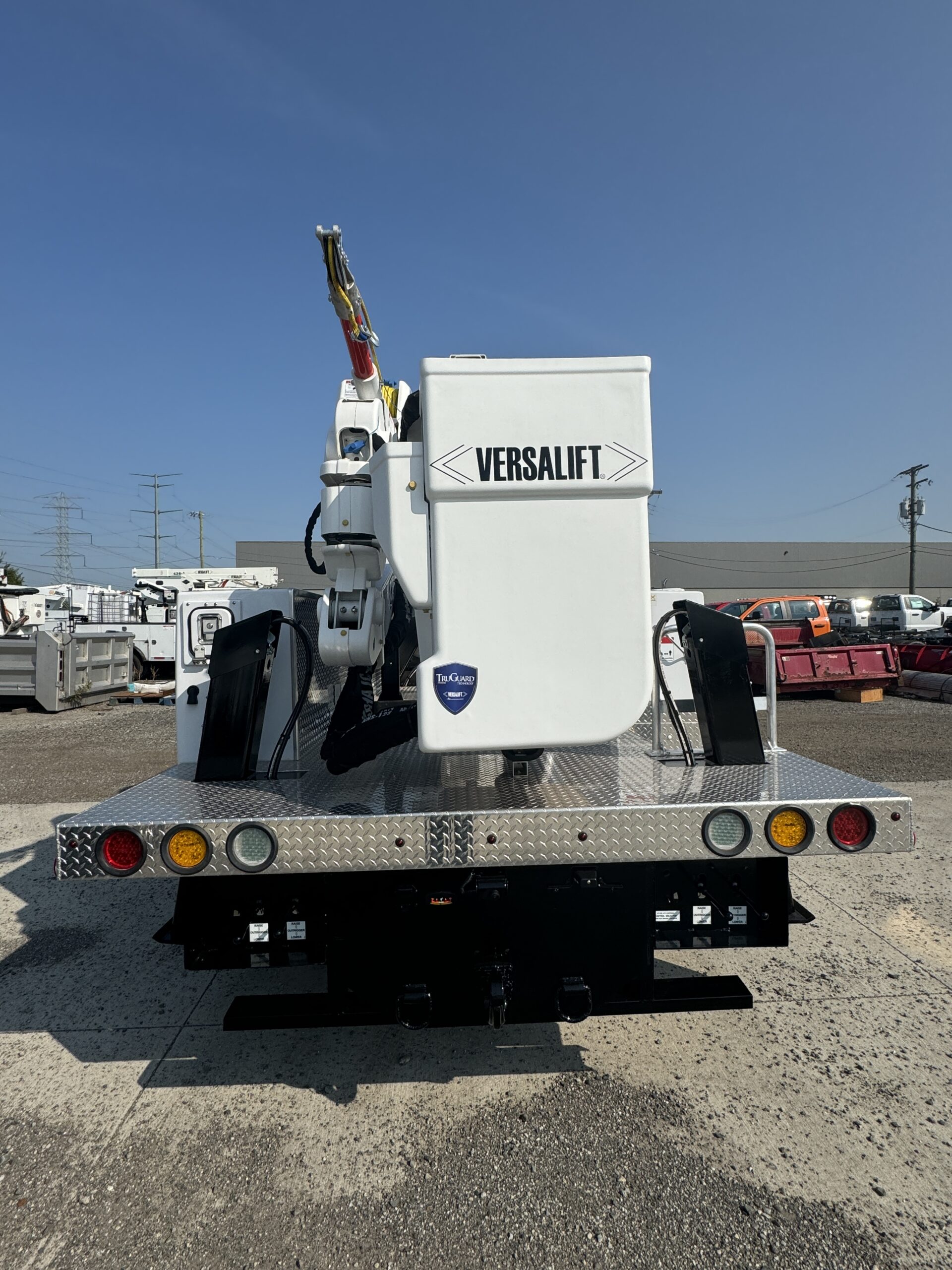

-30″ TREADPLATE ALUMINUM TAILSHELF WITH SIDE SKIRTS
-ALUMINUM TAIL SHELF GRAB RAIL
-WHEEL CHOCK HOLDERS IN SIDE PANEL
-4 OUTRIGGER PAD HOLDERS LOCATED UNDER BODY
-ELECTRIC BACK UP ALARM
-PROFESSIONAL UNDERCOATING
****-DIAMOND TREAD PLATE ON TOPS OF COMPARTMENTS

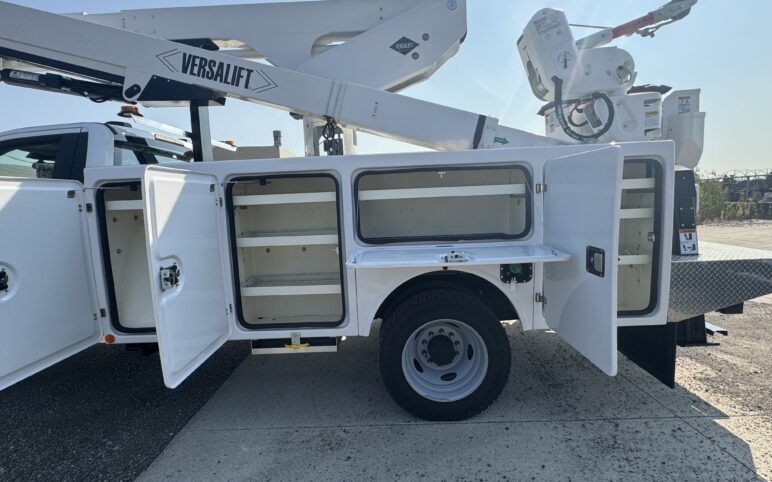

STREETSIDE COMPARTMENT DETAILS:
-#1 OUTRIGGER CUT OUTS AND 1-3-1 MATERIAL HOOKS
-#2 2 ADJUSTABLE SHELVES WITH DIVIDERS
-#3 OPEN
-#4 2 ADJUSTABLE SHELVES WITH EGG CRATE DIVIDERS

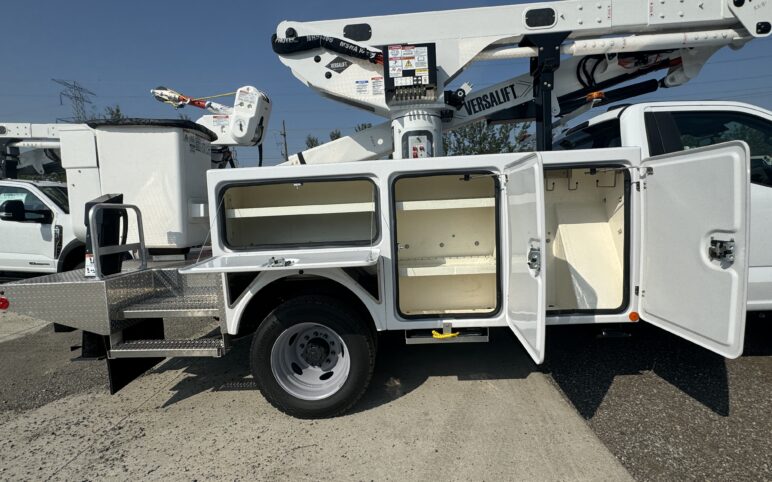

CURBSIDE COMPARTMENT DETAILS:
-#1 OUTRIGGER CUT OUTS AND 1-3-1 MATERIAL HOOKS
-#2 2 ADJUSTABLE SHELVES WITH DIVIDERS
-#3 OPEN
-#4 ACCESS STEPS WITH GRAB RAIL
ADDITIONAL OPTIONS:
-TWO (2) RUBBER WHEEL CHOCKS
-FOUR (4) OUTRIGGER PADS WITH HANDLES
-FIRE EXTINGUISHER AND TRIANGLES
1) 1/2″ CUSTOM CANNON REAR HITCH PLATE W/ BRACING TO REAR OF TRUCK
-ELECTRIC BRAKE CONTROL FOR 2 TO 6 BRAKING WHEELS ON TRAILER
-SAFETY CHAIN D-RINGS
-15 TON PINTLE HOOK
-7 PIN RV STYLE TRAILER PLUG
-PAINTED BLACK
1) STROBE LIGHT PACKAGE TO INCLUDE:
-2 REAR BUYERS SL40AR AMBER STROBES RECESSED IN BACK OF REAR TAIL SHELF
-2 BUYERS POST MOUNTED STROBE LIGHT LOACATED STREETSIDE FRONT OF BODY
