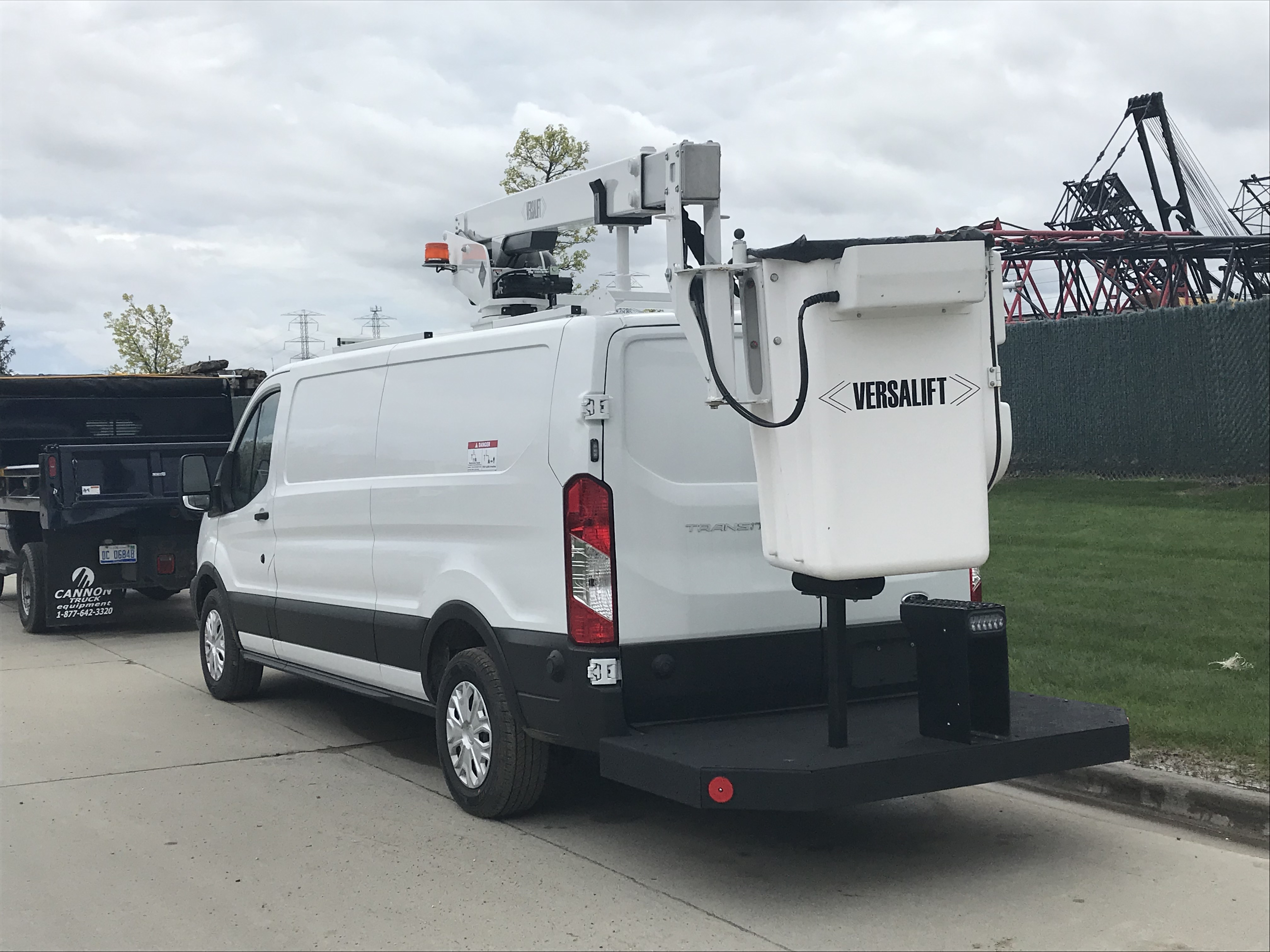

2019 Ford Transist w/Vantel 29NE Aerial Bucket

Categories: ,

Product Description

REFERENCE S-11354

1)VERSALIFT VANTEL-29-NE non-insulated 28’ 10” telescopic aerial platform lift with a 33’ 10” working height, including:

-Standard platform capacity of 350 lbs.

-Heavy duty aluminum inner boom with drop down boom tip.

-Drop down boom tip including manual 180° Positioner.

-Engine start/stop controls at platform and remote lower controls.

-Non-continuous 360 degree rotation with electric limit system.

-Two GPM (7.57lpm) open center hydraulic system.

-Hydraulic oil reservoir with 7 gallon (26.5L) capacity built integral to pedestal.

-Self locking worm gear rotation drive with shear ball bearing.

-Boom articulation from 8 degrees below horizontal to 80 degrees above horizontal.

-Electric rotation limit system.

-Van mount pedestal and mounting hardware for low roof Transit van installation.

-Hand held remote lower controls including 30 ft. cable and override.

-Electric controls at platform including master control, emergency stop, and control cover.

-Hydraulic power supplied by engine belt drive system.

-Walk in hydraulic leveled 24 in. x 24 in. x 42 in. (.61m x .61m x 1.07m) end mounted fiberglass platform with door and vinyl cover

-Non-lube bearings used at all pivot points.

-Multi-link plastic hose carrier system through booms.

-120V wiring to platform with GFCI receptacle.

-12 volt DC backup pump.

-Safety harness and lanyard.

-Unit painted standard white urethane.

-Two operators and service manuals.

-ANSI A92.2 data plate.

1) 2019 Ford Transit Low Roof cargo van, 148 inch wheelbase.

-3.7L V-6 Ti-VCT gasoline engine with 6-speed automatic transmission with OD and selectshift.

-Limited slip with 4.10 axle ratio

-9,500 lb GVWR payload package

-Vinyl dual bucket seats

-235/65R 16C BSW AS tires

-Heavy duty alternator (250 amp) with dual heavy-duty batteries (70 amp-hours each)

-Front and rear vinyl floor covering

-Power front windows and power remote door locks

-High capacity up-fitter switches on the instrument panel

-Air conditioning

-AM/FM radio



Installation to include the following:

-Install VERSALIFT VANTEL-29-NE, belt drive system and mounting hardware

-Install and non-skid bumper extension.

-Install access step with center stop light on extension.

-Install SuperSprings on rear axle both sides.

-Install Masterack cab partition and shelving system and Prime Design roof ladder rack.

-Install two (2) turret mounted amber strobes.

-Install 1800 watt inverter with one Group 31 battery including battery box

-Install parking brake interlock, back up alarm and bucket rest

-Furnish rubber wheel chocks, fire extinguisher, first aid kit and 3 piece triangle warning kit

-Test ride completed unit for 1 Hour.

-Test and Certify per ANSI A92.2
